Published Applications

Published applications let users open a private web application at an address of its own, such as crm.apps.example.com, from any browser. Nothing is installed on the device: no desktop client, no browser extension. The user signs in at the Workplace once, and every request then travels through that user's own private connection to the application.

This suits contractors, partners, personal devices and phones, and any web application you want to reach from anywhere without exposing it to the internet. The address answers only signed-in users the application admits. Everyone else is sent to the sign-in, and an address nobody published answers There is no application at this address.

How it works

1. An administrator turns publishing on for the account and publishes an application: an address, a target such as http://10.1.2.3:8080, and the groups that may open it.
2. The address points at the Netzilo reverse proxy through a wildcard DNS record for the application domain. On Netzilo Cloud that is *.netzilo.app, already in place. On a self-hosted server it is *.apps.example.com pointing at the server.
3. A user opens https://crm.apps.example.com/. The reverse proxy has no session for that browser, so it sends the user to the Workplace. The Workplace signs the user in if needed, checks that the address is one the user may open, and hands the sign-in back to the application's address.
4. The reverse proxy verifies the sign-in with the management server and sets a session cookie for that address only. The Workplace dialog shows Logging in while the user's private connection comes up, then opens the application.
5. From then on every request on that address goes through the user's tunnel: a virtual peer in the user's account, named vp-<n>-RPROXY, with that user's policies, routes and DNS. The target is reached through that tunnel and nowhere else, so the user reaches exactly what their policies allow. The application receives two headers naming the user, Nz-User-Id and Nz-User-Email, and the published address in X-Forwarded-Host.
6. A sign-in lasts 12 hours per address and is re-checked with the management server every 10 minutes. Removing an application, changing a group or blocking a user takes effect within that interval. After 60 minutes without traffic the tunnel stops and starts again on the next request, as the same peer.

Published never means public. The application's groups decide who may open it. The user's policies decide whether their tunnel reaches the target. A user admitted to an application whose policies do not reach the target sees Access Failed, not the page.

Before you start

• A wildcard DNS record. On Netzilo Cloud, *.netzilo.app already points at the reverse proxy. On a self-hosted server, create *.apps.example.com pointing at the server's public IP, using a domain other than the server's own.
• A route and a policy to the target. The target's network must be a route distributed to a group the user is in, allowed by a policy from one of the user's groups. See Routing traffic to private networks and Policies. Publishing adds no permissions of its own.
• Posture checks in the right place. Requirements on the user's device go on the application itself and are judged at its door, see Posture checks on the application. Posture checks on the policies that reach the target are judged against the user's reverse-proxy peer, which is not a managed endpoint, see Posture checks for reverse-proxy peers.

Step 1: Allow published applications for the account

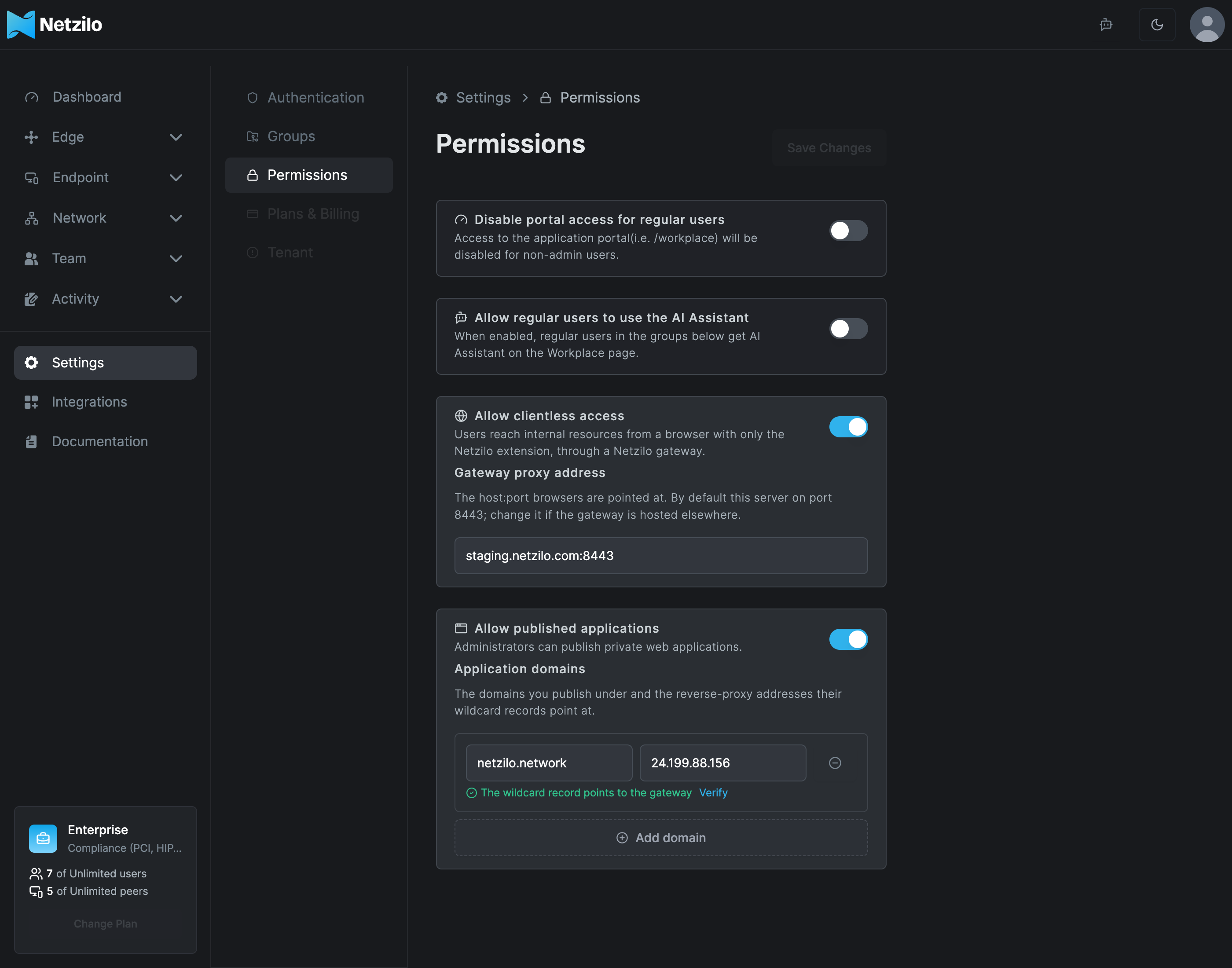

Go to Settings > Permissions and turn on Allow published applications.

Under Application domains, add the domains you publish under, each with the address its wildcard record points at. On Netzilo Cloud add netzilo.app with the address that anything.netzilo.app resolves to. On a self-hosted server add the domain you gave the installer, with the server's public IP.

Click Verify on a row to check the DNS record. Management resolves a random name under the domain through public resolvers and reports whether the wildcard points to the reverse proxy, points elsewhere, or is missing. It is a check, not a gate: you can save a domain before its record exists.

Click Save Changes. Turning the switch on or off is recorded in Activity > Events.

While the switch is off nothing is published. Existing applications keep their settings and come back when it is turned on again. A server upgraded to this release starts with the switch off.

Rules for application domains:

• On Netzilo Cloud, and on any self-hosted server with more than one account, every published address must be a name under one of the account's application domains.
• An application domain belongs to one account. A domain another account already uses, or a name under or above it, is refused. The shared Cloud domain netzilo.app is the exception every account adds.
• Do not use the server's own domain, nor anything under netzilo.network. Names there are resolved inside every tunnel and would never reach the reverse proxy.

Step 2: Publish an application

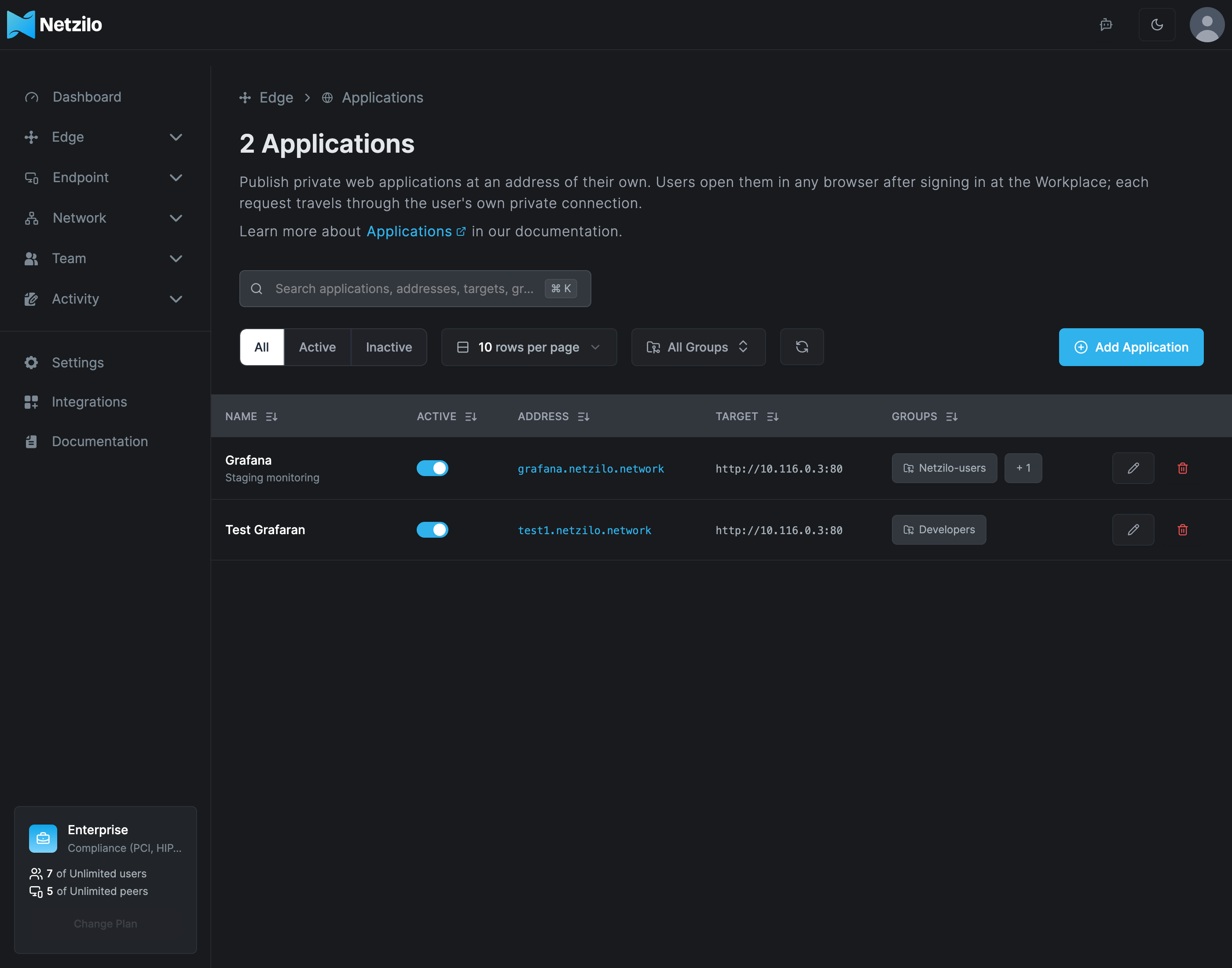

Go to Edge > Applications. The table lists each application's name, address, target and groups, with an Active switch per row.

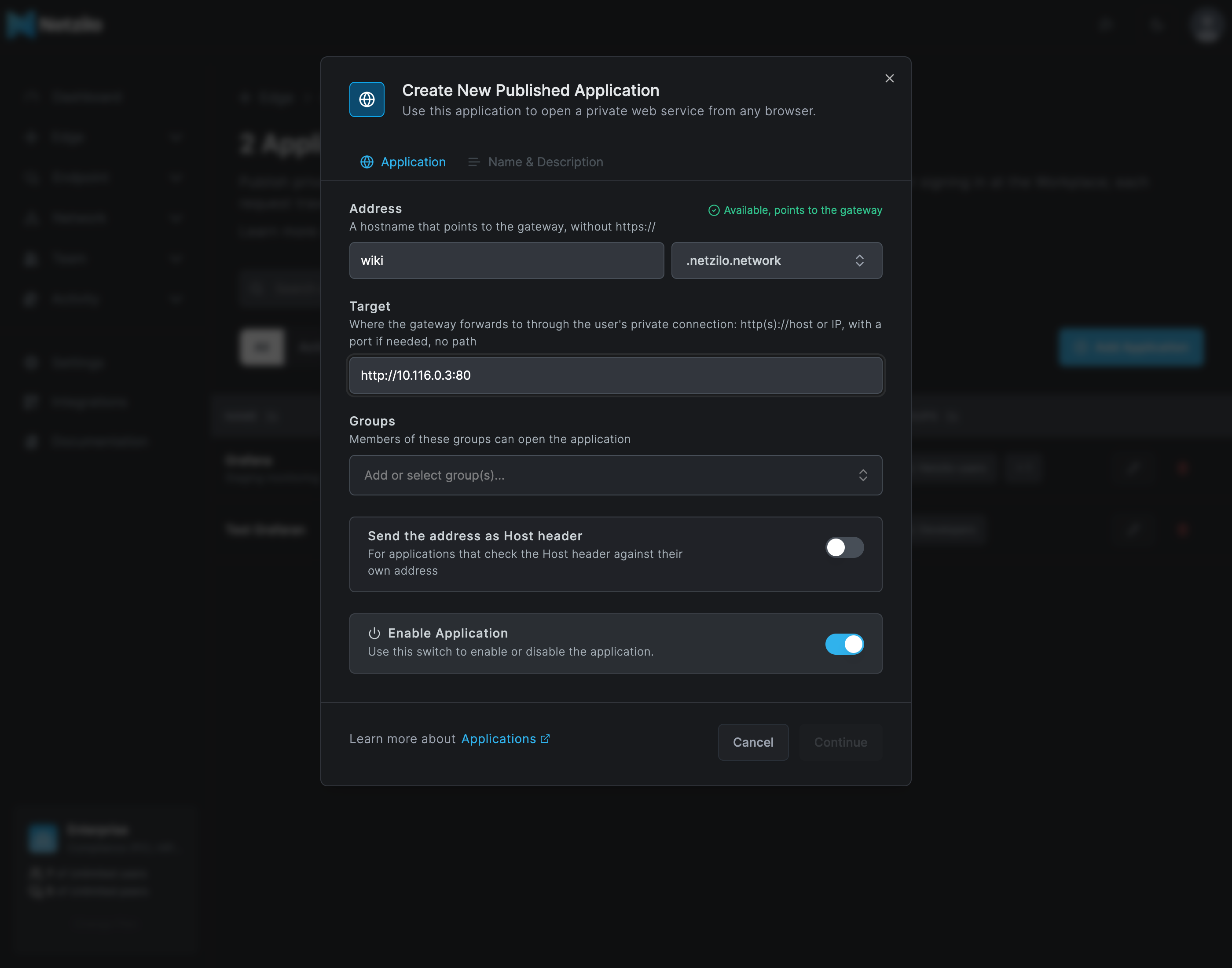

Click Add Application.

Click Continue. The Posture Checks tab lists the account's posture checks. Pick the ones the user's device must satisfy to open this application, and choose whether all of them or any one must pass, as on a policy. Leave the tab empty for no device requirement. How the checks are judged is described under Posture checks on the application.

Then give the application a name that is shown on the Workplace tile, an optional description, and click Add Application.

The Applications table shows the number of posture checks per row. A posture check that an application uses cannot be deleted while it is in use; the Posture Checks page lists the applications that use it.

An address is unique across the whole server, first come, first served. On Netzilo Cloud every account publishes under the shared netzilo.app, so choose distinctive labels such as grafana-acme.

A new address answers within a minute of saving. On a self-hosted server with Let's Encrypt, the certificate for the name is obtained on the first visit, which can take a few seconds.

Publishing, updating and unpublishing an application are recorded in Activity > Events as Application published, Published application updated and Application unpublished.

What users see

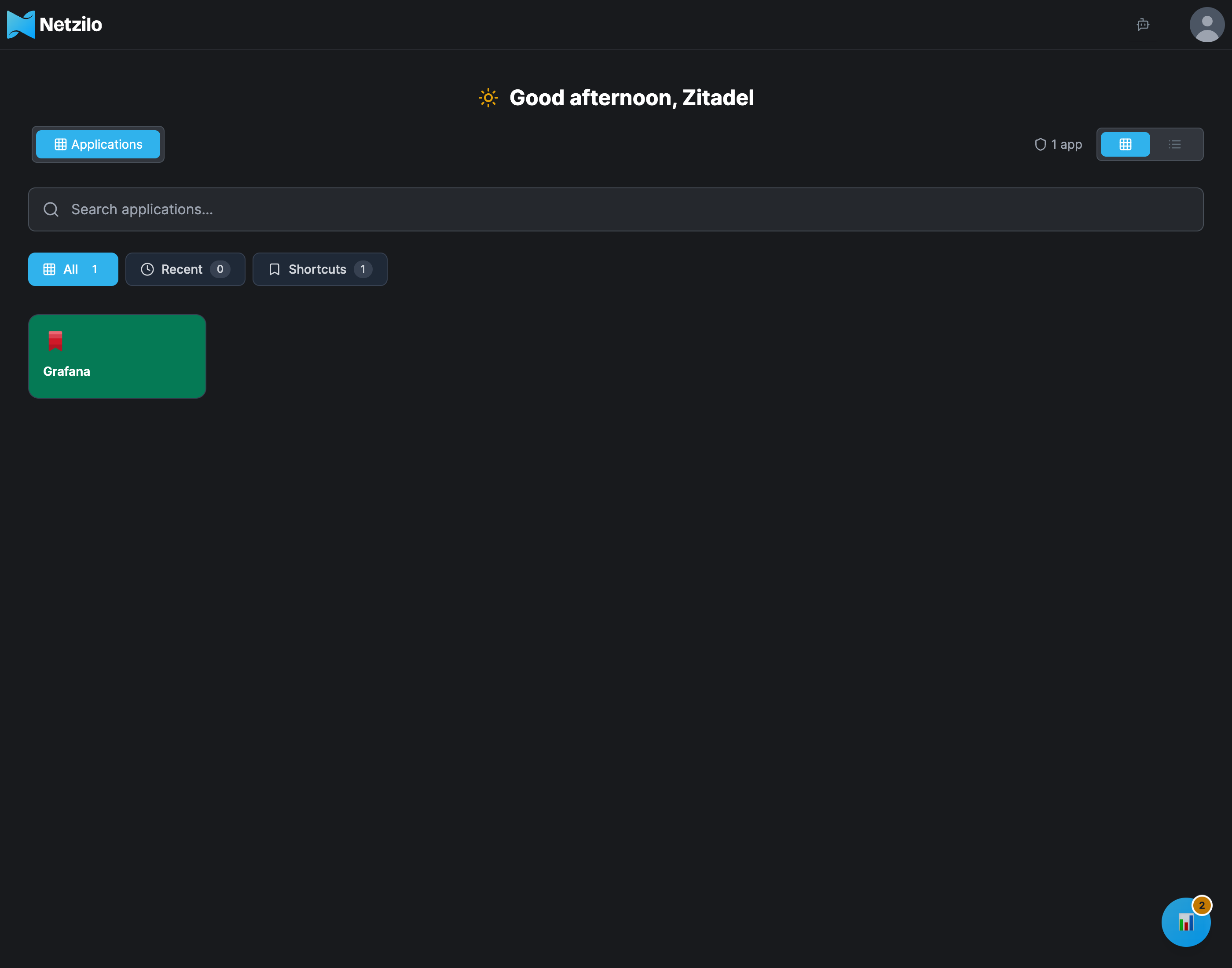

The Workplace shows every application the user may open as a tile under Applications, next to the bookmarks and shortcuts. Opening a tile goes to the application's address in a new tab.

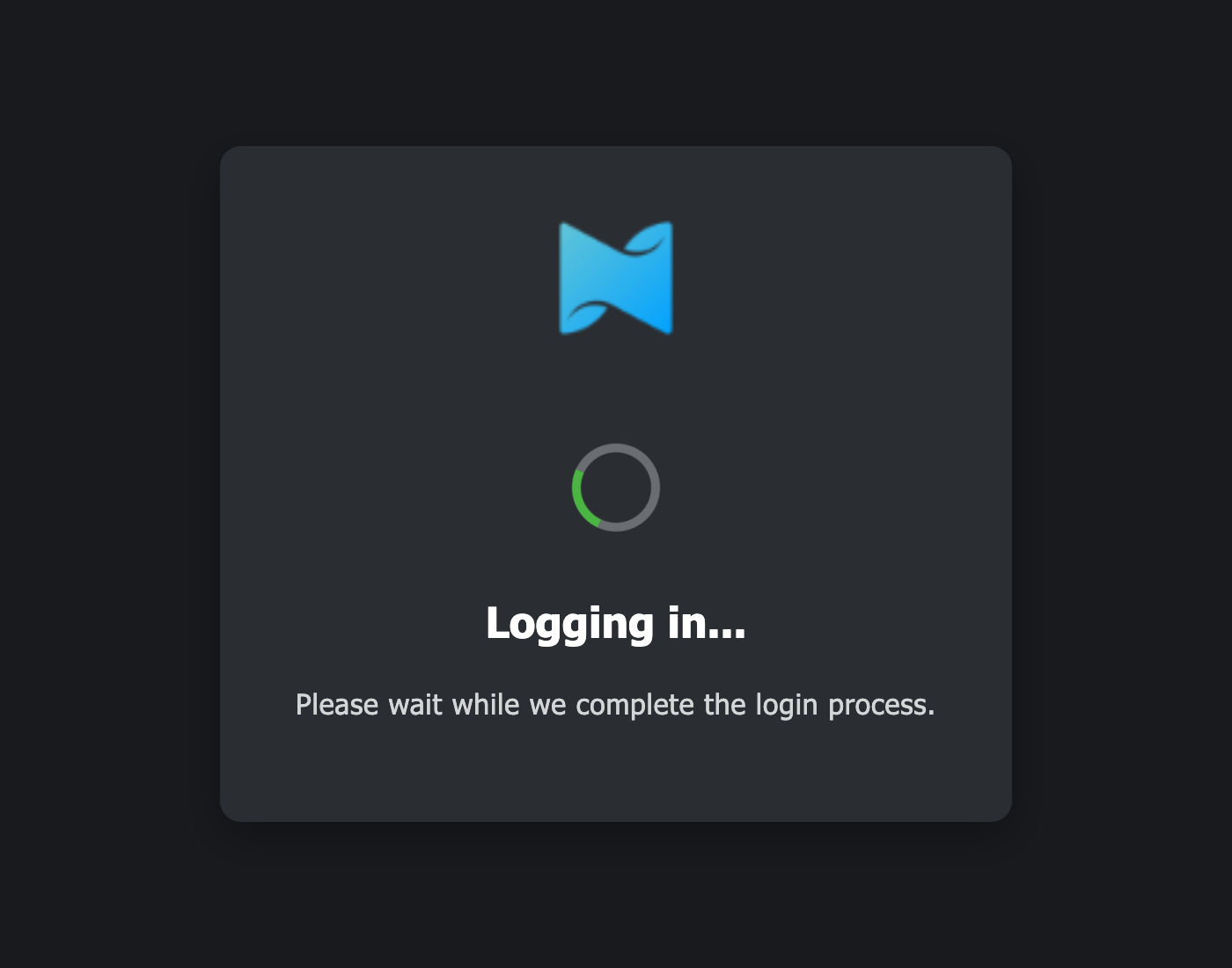

On the first open, and again after 12 hours, the user sees the Workplace's sign-in dialog. A user who is not signed in at the Workplace signs in there first and is brought back. The dialog shows Logging in while the user's private connection comes up, a few seconds, or 10 to 20 seconds the first time in an hour while the user's peer registers. Then the application opens.

A second application opened from the same browser needs no new sign-in. A bookmark to the application works: the cookie on the application's address carries the session, and the Workplace is only needed to sign in.

Signing out of the Workplace ends the Workplace session and, in the same browser, every published application's session of that user. The applications ask for a sign-in again at once. A session that is not signed out ends after 12 hours, or within 10 minutes of the user's login being revoked.

Users with the Netzilo desktop client, and users on phones, use published applications the same way. The browser goes to the published address, and the reverse proxy carries the request.

Posture checks on the application

The posture checks chosen on the application are judged at the door: when the user signs in at the application's address, before a session exists. They apply to the device the browser runs on, which may or may not have the Netzilo client. This is different from the checks on policies, which are judged against the user's reverse-proxy peer once the session runs, see Posture checks for reverse-proxy peers.

What the door knows about the device. The Workplace's sign-in dialog collects the evidence and hands it to the application's address with the sign-in. Management judges it; the reverse proxy holds no posture logic of its own.

Without a Netzilo client on the device, the rules in the last row fail, as they do for any browser. The posture is what the device reports about itself, as a peer's posture is. The Netzilo Gateway rule never passes at the door; it is for policies that admit browser sessions of a gateway.

All or any. With all (the default) every chosen check must pass. With any one, a single passing check admits the user. A check is a group of rules, and every rule in a check must pass for the check to pass.

When it is judged. At every sign-in, that is on the first open and again after 12 hours, and whenever the Workplace sends the user through the sign-in again. A running session is re-checked with management every 10 minutes with the evidence of its sign-in, so a change to the application's checks or groups takes effect within that interval, while a change on the device itself is seen at the next sign-in.

What the user sees when a check fails is Access Denied with the check's name and the failing rule's reason. When the extension alone is missing, the dialog shows Additional Protection Required instead and offers to add or connect the extension, then tries again by itself. See What users see.

Activity. Every decision at the door is recorded under Activity > Events:

Each event names the user, the application and its address, the device's public address with its location, operating system and browser. The activity page's code filter finds them quickly: on a busy account they are soon pushed down by routine events.

Scripts and services

A script, a monitoring job or a service can call a published application without a browser by sending a Netzilo credential on every request:

curl https://grafana.apps.example.com/api/health \
  -H "X-Netzilo-Bearer: nzl_..."

X-Netzilo-Bearer carries the caller's personal access token, or a token from your identity provider. It is consumed by the reverse proxy and never reaches the application. Every other header, including Authorization, passes through as sent, so an application that expects a bearer token of its own still gets it.

The credential is checked like a browser sign-in, and its owner must be admitted to the application. The owner is the user the application sees. Answers to a caller without a browser are JSON: 401 when the credential is refused, 403 when the owner is not allowed to open the application, 404 when there is no application at the address, 429 after 20 refused credentials from one address in 5 minutes, and 503 with a Retry-After header while the tunnel is not up yet. Every answer carries an X-Request-Id header.

Create the token as the user the application should see, under Team > Users, or as a service user. A token reaches every application its owner is admitted to, from anywhere, so treat it like a password.

Reverse-proxy peers in the Peers list

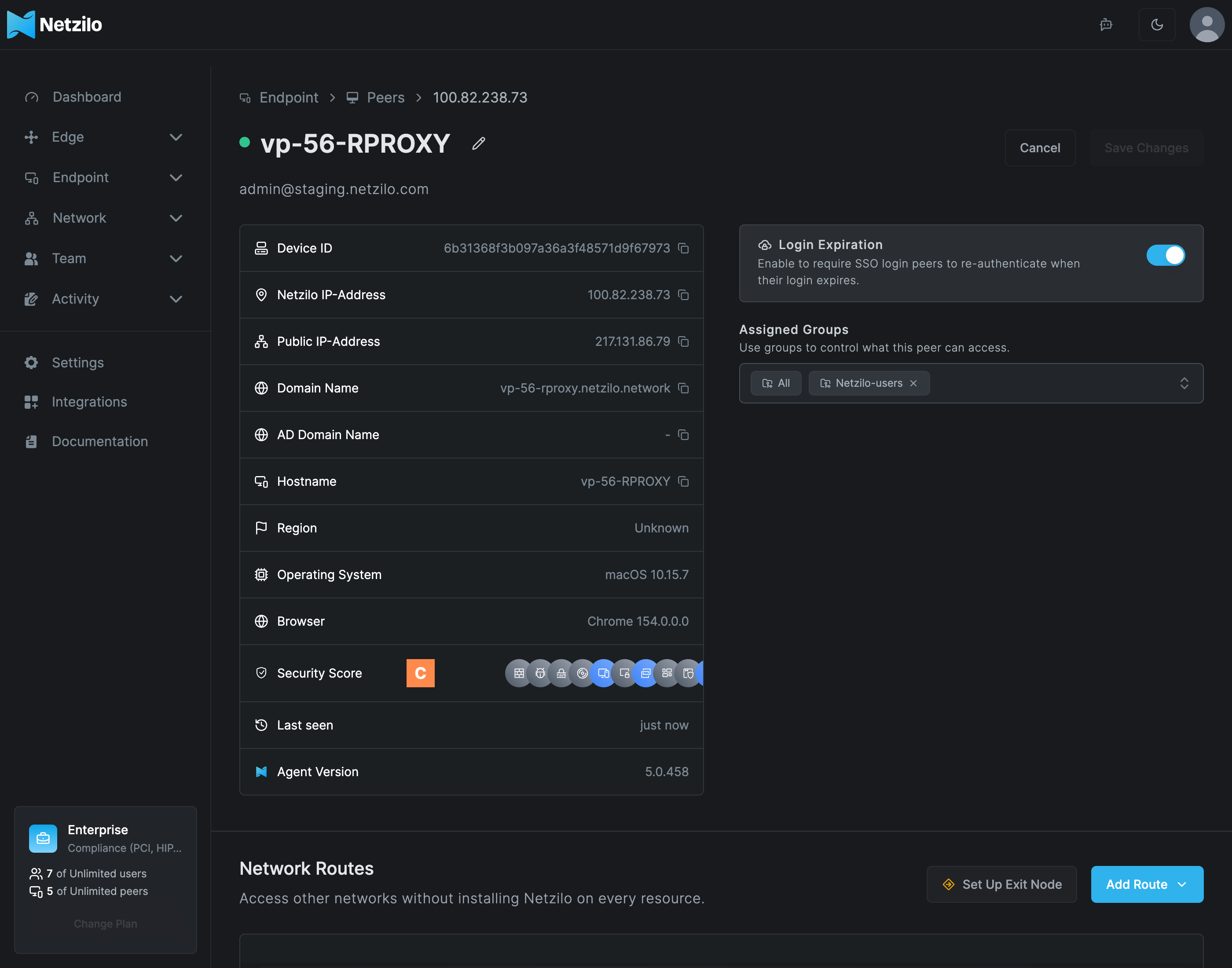

Each user's tunnel appears under Endpoint > Peers as a peer named vp-<n>-RPROXY.

• One per user, public address and operating system. All of a user's browsers at one address on one operating system share the tunnel. The same user from home and from the office is two peers, each judged by its own location. A Mac and a Windows laptop behind one address are two peers, each judged by its own operating system. A user can have at most 16 tunnels at a time.
• The peer comes back. After the idle stop or a restart of the reverse proxy the same vp-<n>-RPROXY reconnects instead of a new number appearing. An identity unused for 30 days is dropped.
• What it shows. The user's public IP address and location, the operating system and version the browser reported when the user signed in, every browser that used the tunnel with its version, and the reverse proxy's version as the agent version. The Netzilo Gateway indicator in the security score is lit, as it is for browser sessions.
• Cleanup. The peers are ephemeral. Management removes them automatically once they have been offline for a while, and they register again under the same name on the next use.
• Not a browser session. The peer is the user's tunnel, not a browser with the extension. It does not appear in the Workplace's Private access status.

Posture checks for reverse-proxy peers

Posture checks on the policies that reach the target are evaluated against the user's reverse-proxy peer, after the door has admitted the user. Requirements on the device belong on the application, see Posture checks on the application.

To let browser users reach a target that desktop users reach only with endpoint checks, give them a separate policy without those checks, or with location, network range and operating system checks only. When a session starts, the activity log records Peer access blocked for each policy whose checks it fails. These events show the design working, not a fault.

Self-hosted servers

The self-hosted installers add the reverse proxy when you give them an application domain. It runs as the reverse-proxy container behind Caddy, next to management and the gateway. Nothing extra needs to be opened in the firewall: published applications use port 443.

1. Pick a domain for the applications, for example apps.example.com, and create a wildcard record *.apps.example.com pointing at the server's public IP. Use a domain other than the server's own.
2. Give it to the installer. The on-prem installer asks for the Published applications domain; for an unattended install set NETZILO_APPS_DOMAIN=apps.example.com. The AWS CloudFormation template has the parameter Published applications domain, and the Azure managed application asks for it on the Basics page.
3. After the first login, turn on Allow published applications under Settings > Permissions, add the domain with the server's IP, and publish under Edge > Applications.

Certificates. With Let's Encrypt, Caddy obtains a certificate per published name on that name's first visit. Only names that are actually published get one. With a certificate you provide, it must also cover *.apps.example.com, or pass a second one for the wildcard with NETZILO_APPS_CERT_FILE and NETZILO_APPS_KEY_FILE. With a self-signed certificate the installer adds the wildcard to its names.

A server installed without an application domain. Do not re-run the installer, which wipes the server. Add the reverse proxy to the existing installation instead. This needs a shell on the server and a management server and dashboard from a release with published applications; upgrade them first if needed. It applies to Let's Encrypt installs; with a certificate you provide, the wildcard must be in it.

1. Create the wildcard record *.apps.example.com pointing at the server's public IP and confirm it resolves: dig +short nz-check.apps.example.com.
2. In the installation folder (/opt/netzilo, or /opt/netzilo/run on the AWS and Azure images), back up docker-compose.yml and Caddyfile.
3. Add the service to docker-compose.yml, before the top-level volumes: line, with --workplace-url set to the server's own address, and add the volume:

  reverse-proxy:
    image: ghcr.io/netzilo/net-reverse-proxy:latest
    container_name: reverse-proxy
    restart: unless-stopped
    cap_drop:
      - ALL
    security_opt:
      - 'no-new-privileges:true'
    networks:
      - netzilo
    depends_on:
      - management
    volumes:
      - /etc/ssl/certs:/etc/ssl/certs:ro
      - netzilo_reverse_proxy:/var/lib/netzilo-reverse-proxy
    command: [
      "run",
      "--management-url", "http://management:80",
      "--listen", "127.0.0.1:8443",
      "--egress", "off",
      "--publish-listen", ":8444",
      "--publish-tls", "none",
      "--publish-trusted-proxies", "172.20.0.0/24",
      "--workplace-url", "https://netzilo.example.com",
      "--admin-listen", ":9090",
      "--idle-timeout", "60m",
      "--data-dir", "/var/lib/netzilo-reverse-proxy",
      "--log-file", "console",
      "--log-level", "info"
    ]

volumes:
  netzilo_reverse_proxy:

If the gateway service has an extra_hosts block, copy it onto reverse-proxy too.

4. In the Caddyfile, add to the global options block at the top:

  on_demand_tls {
    ask http://reverse-proxy:9090/tls-ask
  }

and a site at the end:

*.apps.example.com:443 {
    tls {
        on_demand
    }
    reverse_proxy reverse-proxy:8444
}

5. Apply and check:

sudo docker compose config -q && sudo docker compose up -d reverse-proxy && sudo docker compose restart caddy
sudo docker compose logs --tail=20 reverse-proxy | grep 'publishing on'
curl -sS -o /dev/null -w '%{http_code}\n' -H 'Accept: application/json' https://nz-check.apps.example.com/

The log shows publishing on [::]:8444, and a name nobody publishes answers 404. Then add the domain under Settings > Permissions and publish under Edge > Applications.

Tuning. The reverse proxy's settings are command-line options of the reverse-proxy service in the server's docker-compose.yml. After changing them, restart the container with docker compose up -d reverse-proxy.

The reverse proxy and the gateway are two containers with two purposes. The gateway serves browsers that carry the Netzilo extension, see Clientless Access. The reverse proxy serves published applications to browsers with nothing installed.

Troubleshooting

There is no application at this address. Publishing is off under Settings > Permissions, the application is disabled or deleted, or the address differs from the one published. A newly saved address can take up to a minute to answer.

The address does not resolve, or the browser shows a certificate error. Check the wildcard record with Verify under Settings > Permissions. On a self-hosted server with Let's Encrypt, the first visit to a new application obtains its certificate; try again after a few seconds. A certificate you provided must cover the wildcard.

Access Denied, your account is not allowed to open the address. The user is in none of the application's groups. Add the group, or turn publishing on. An existing session follows within 10 minutes; a new sign-in at once. The event Application access denied: not admitted records the attempt.

Access Denied because a posture check failed. The event Application access denied by posture names the check and the reason. Then:

• Peer is not using Netzilo Enterprise Workspace, from a device that is in the Workspace. The door learns this from the Netzilo client inside the Workspace. The client must be current: an older client answers nothing, and the rule fails as for a plain browser. Update the client in the Workspace and sign in again.
• Peer is not using Netzilo Enterprise Browser, from the Enterprise Browser. The browser is recognized by its own User-Agent. Check that the user is really in the Enterprise Browser, not in another browser on the same computer.
• An antivirus is not active, Disk encryption is not enabled and the other endpoint rules, from a device with the Netzilo client. The device reports these the same way it does for its peer: compare the indicators on its peer page. Without a client on the device these rules always fail.
• Peer is not a Netzilo gateway session. The Netzilo Gateway rule never passes at the door. Remove it from the application's checks; it is for policies.
• The check passes on the device now but the session is still refused. A running session is judged on its sign-in's evidence. Have the user sign out of the Workplace and open the application again.

Additional Protection Required. The application requires the Netzilo browser extension and this browser has none, or one that follows another server. The dialog offers to add it, or to connect it to this server, and opens the application again when it answers. An old extension that cannot be connected from the dialog is updated or connected from its own popup.

Access Failed. The user is signed in and admitted, but the target is not reachable through the user's tunnel. Check, in this order:

• The route. The target's network is a route distributed to one of the user's groups.
• The policy. A policy from one of the user's groups allows the target.
• Posture checks. The policy's checks can pass for a reverse-proxy peer. Endpoint checks never do, and an OS minimum above what the browser reports blocks it. See Posture checks for reverse-proxy peers.
• The target. The address and port are right and the application is up. A name is resolved by the user's DNS settings, not by the server.
• The peer. Look for the user's vp-<n>-RPROXY peer under Endpoint > Peers and check that it is connected.

The same user reaching the target with the Netzilo client proves the route and the policy.

Stuck at Logging in. The user's tunnel cannot connect, or management is unreachable from the reverse proxy. On a self-hosted server, check the reverse-proxy container's log while the user retries.

The sign-in did not come from the Workplace. On a self-hosted server the --workplace-url option does not match the address users sign in at. Set it to the server's address, scheme and host exactly, and recreate the container.

Sign-in expired. The sign-in link was older than 10 minutes, was used twice, or the browser blocks cookies for the application's address. Open the application from the Workplace tile again.

The application loads, but links, redirects or its own login go to an internal name. The application builds absolute URLs from its configured base address. Set that to the published address, or turn on Send the address as Host header for the application.

The application works for some users only. The users' groups admit them differently, or their policies reach the target differently.

A script gets 401 with a valid token. The token is expired or revoked, or its owner is blocked. Through a proxy that strips headers, Proxy-Authorization is dropped: send the token in X-Netzilo-Bearer.

After a restart every user is sent through the Workplace again. Sessions live in the reverse proxy's memory. This is expected, and silent while the Workplace session is alive.
