Clientless Access

Clientless access lets users reach internal resources from a browser that has only the Netzilo browser extension installed. No desktop client, no VPN adapter and no administrator rights on the device are needed. This suits contractors, partners and personal devices you do not manage.

The extension sends traffic for internal names and addresses to a Netzilo gateway. The gateway carries it into your network under the user's own policies. Everything else keeps going directly to the internet, or through your corporate proxy.

How it works

1. The user logs in with the Login button in the extension popup.
2. The extension asks the management server how this user's browser should route. It repeats the question every 5 minutes, so changes you make reach browsers within that time.
3. Management computes the answer as if the user had just added a new device. It takes the user's groups, the policies those groups are sources of, the routes and DNS settings distributed to them, and the posture checks evaluated against the browser. The result is a proxy auto-configuration (PAC) script.
4. The extension installs the PAC in the browser. The PAC sends only internal traffic to the gateway. When the gateway asks the browser to authenticate, the extension answers with the user's login and the browser's device identity. The user never sees a password prompt.
5. The gateway starts a session for that user on that browser. The session is a virtual peer in the user's account, named vp-<n>-PROXY. Traffic goes through that peer's tunnel, so the user reaches exactly what their policies allow and nothing more. The gateway also resolves the internal names, so they never have to exist in public DNS.
6. After 60 minutes without traffic the session stops. The next request starts it again, which takes a few seconds.

If a Netzilo desktop client is installed on the device, the extension leaves routing to the client and installs nothing. A client that has been seen on the device in the last 7 days counts as installed, even while it is stopped. A client that starts later takes over at once while the Workplace page is open, and within 30 seconds otherwise; the extension then removes its proxy setting and shows the client's state.

Before you start

• The gateway must be reachable. On Netzilo Cloud, the gateway is srv.netzilo.com:8443 and is already set up. On a self-hosted server, see Self-hosted servers.
• Users need the browser extension. Deploy it as described in Enterprise Browser Extension.
• Policies decide what users reach. Clientless access adds no permissions of its own. A user reaches the same resources their policies give them on a desktop client, minus any resource protected by a posture check a browser cannot pass. See Posture checks for browser sessions.

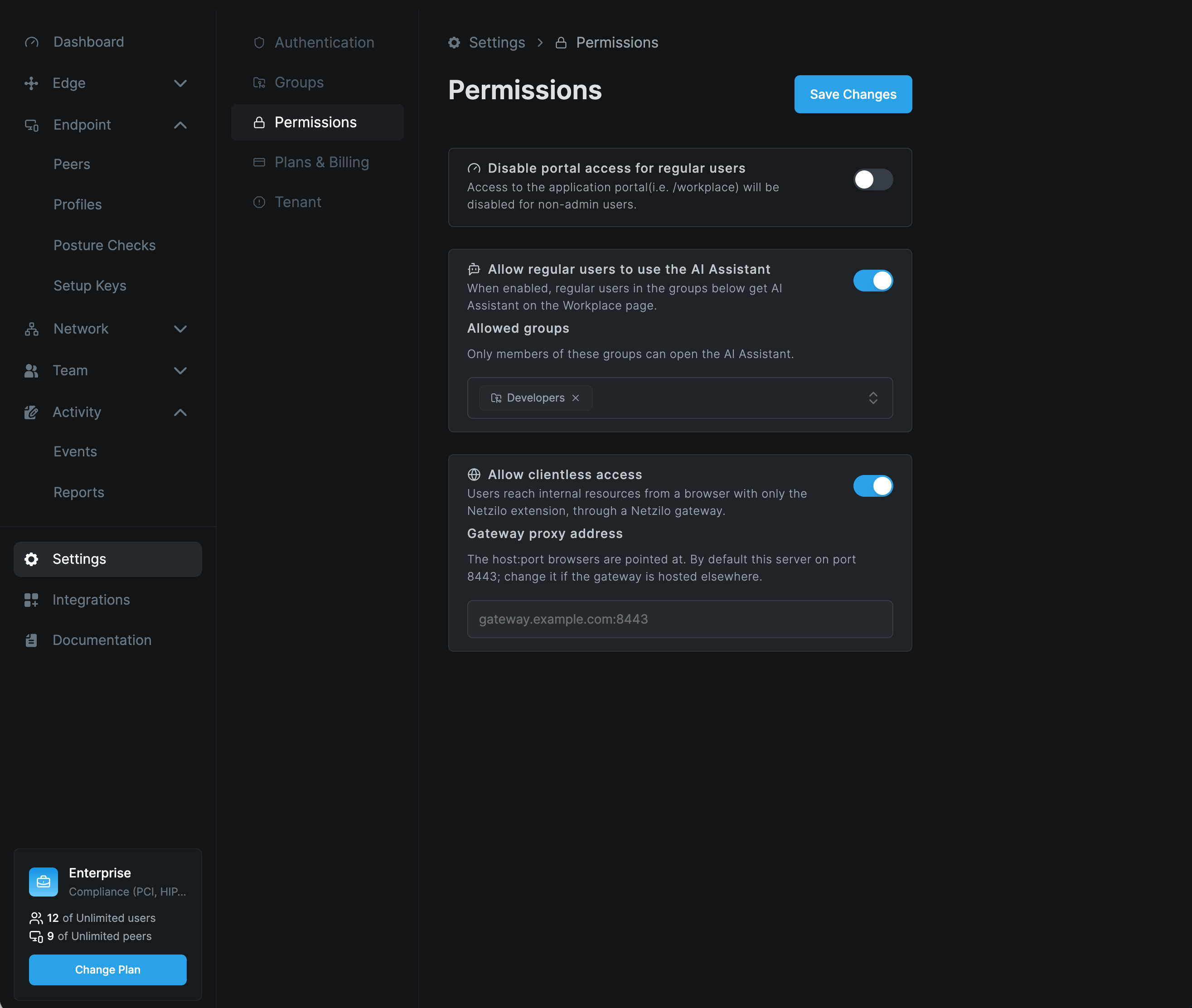

Step 1: Allow clientless access for the account

Go to Settings > Permissions and turn on Allow clientless access.

Gateway proxy address is the host:port browsers are sent to. Leave it empty to use the management server's own address on port 8443. Enter an address only when the gateway runs on a different host or port.

Click Save Changes. Turning the switch on or off is recorded in Activity > Events.

The switch controls whether management serves automatic routing. When you turn it off, browsers remove the Netzilo PAC at their next refresh, within 5 minutes. A profile set to Custom PAC keeps being served either way, because its script is entirely yours.

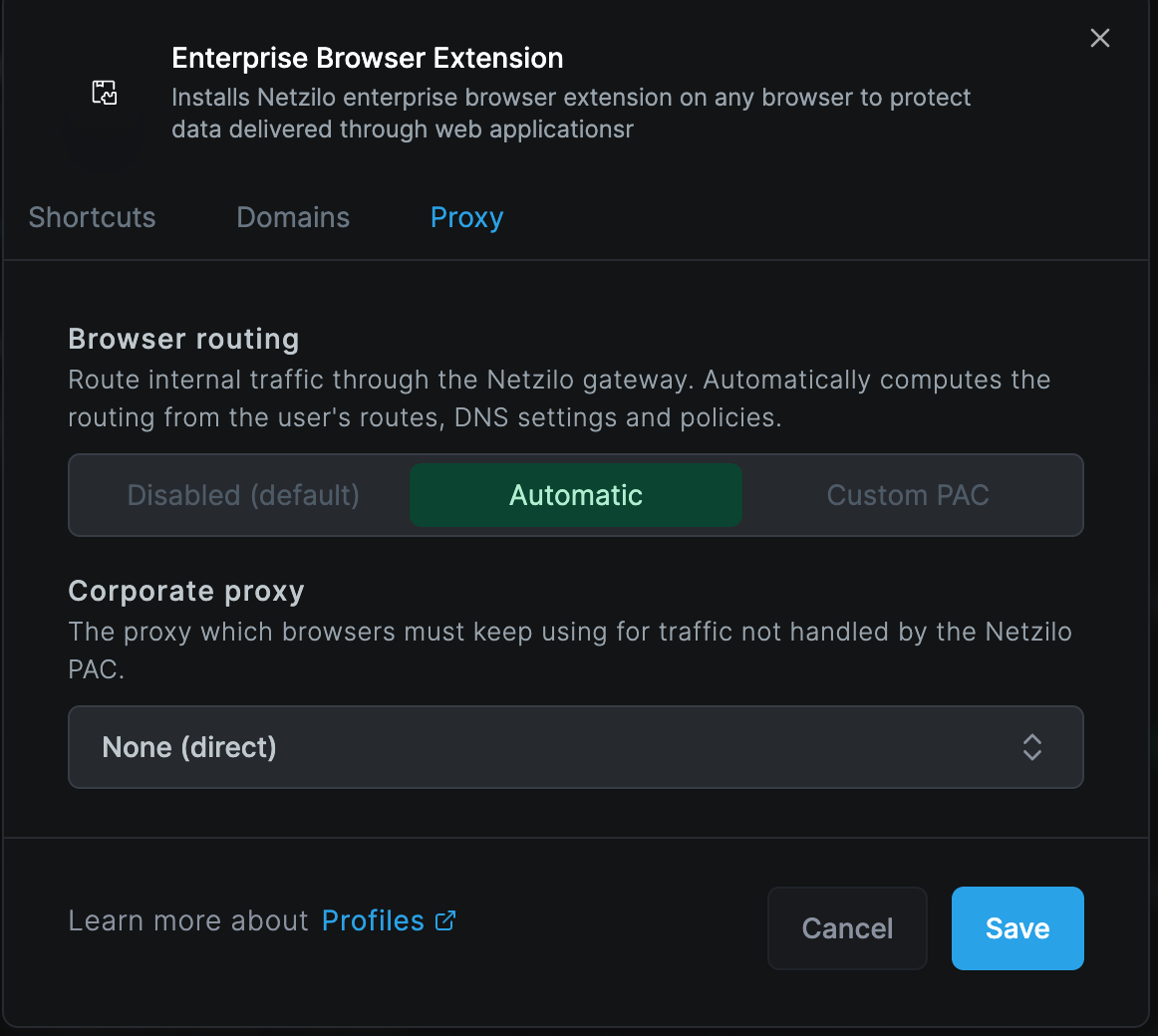

Step 2: Choose browser routing in a profile

Browser routing is set per profile. Go to Endpoint > Profiles, open a profile that includes the Enterprise Browser Extension, and select the Proxy tab.

Browser routing has three modes.

A user's browser follows one profile. Among the enabled profiles for the browser's operating system whose groups include one of the user's groups, the profile that comes first by name applies. Avoid giving the same user overlapping profiles with different proxy settings.

Automatic

In automatic mode, these go to the gateway:

• The names of your peers, such as laptop.netzilo.network.
• The domains of the nameserver groups distributed to the user.
• The domains of DNS routes, and the networks of network routes, served to the user.
• The Netzilo network address range.
• Everything, when the user has an exit node.

Only what the user may reach is included. A route behind a policy whose posture checks the browser fails is left out.

Corporate proxy

If your organisation requires a proxy for internet traffic, set Corporate proxy so browsers keep using it for everything the Netzilo PAC does not send to the gateway.

When the corporate proxy is configured in the browser itself, the extension detects it and chains to it without any setting here. A proxy configured only in the operating system is invisible to browser extensions, so enter it here. If you don't, the extension notices that internet access breaks and removes its own PAC rather than cut users off.

The corporate proxy applies in automatic mode. In custom mode, your script decides everything.

Custom PAC

Choose Custom PAC to control routing yourself. The script must define FindProxyForURL and can be at most 64 KiB. Send traffic to the gateway with the HTTPS host:port directive, for example "HTTPS srv.netzilo.com:8443".

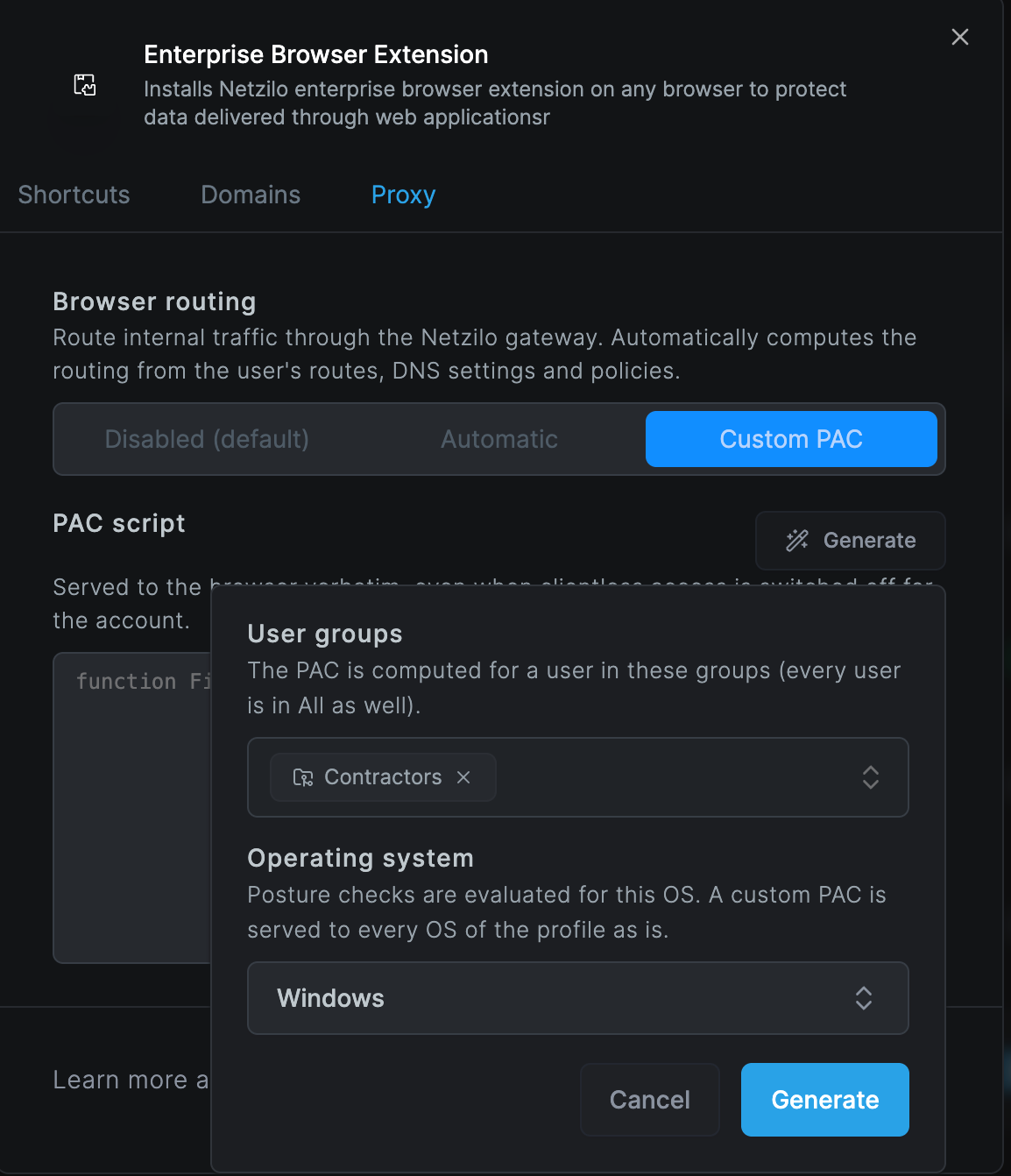

To start from what automatic mode would produce, click Generate.

1. Under User groups, choose the groups to compute the PAC for. Every user is also in the All group.
2. Under Operating system, choose the OS that posture checks are evaluated for. A current version of that OS is assumed.
3. Click Generate. The script replaces the one in the editor, after you confirm.
4. Edit the script if needed, then click Save.

A custom PAC is a snapshot. It does not follow later changes to routes, DNS or policies. Generate it again after such changes.

What users see

The extension popup shows a Private access row.

The Workplace page shows tabs for what is on the computer. With the desktop client, it shows Applications and Devices. Without the client, when the Netzilo extension is installed in that browser and the user's profile gives browser routing, it shows Applications and a Private access status. With neither, it shows Applications only.

The status is what the extension itself reports, the same way the desktop client reports its own device: nothing is inferred from the server or from the user's other browsers. The page asks the extension every 15 seconds while it is visible. When the desktop client runs on the computer, the Devices tab returns.

Browser sessions in the Peers list

Each browser session appears under Endpoint > Peers as a peer named vp-<n>-PROXY.

• What it shows. The peer shows the browser's operating system, the extension version as its client version, and the browser's public IP address and location. A Browser row names the browser and its version, such as Edge 154.0.0.0. Chrome and Edge report only their major version; Firefox reports its full version.
• Security score. In the Security Score row, the Netzilo Gateway indicator is lit. A session reports no other device signal, so it scores 50 (grade C) on Windows, macOS and Linux, and 100 (grade A) on Android and iOS.
• One per browser. A user gets one session per browser. The browser keeps a stable device identity, so logging in again reuses the same session. A user can have at most 5 browser sessions at a time.
• Cleanup. Sessions are ephemeral peers. Management removes them automatically once they have been offline for a while.
• Only these names. Only a peer named exactly vp-<n>-PROXY that reports the browser platform is treated as a browser session. A device that happens to have a name starting with vp is an ordinary peer.
• Revocation. The gateway checks every session's login with management every 10 minutes. When you block or delete a user, or their login is revoked, their browser sessions lose access within that time.

Posture checks for browser sessions

Posture checks are evaluated against the browser, both when management computes the routing and when the gateway session connects. A browser is not a managed endpoint, so checks that need to inspect the device cannot pass.

To give browser users access to a resource that desktop users reach only with endpoint checks, add a separate policy for the browser users without those checks. To keep that policy to browser users, attach a posture check with only Netzilo Gateway turned on. You find it under Endpoint > Posture Checks, in Advanced Endpoint Settings, next to Enterprise Workspace and Enterprise Browser.

Follow these rules for the Netzilo Gateway check:

• Keep it alone. Turn on nothing else in the same posture check. Any endpoint item beside it fails for every browser session, so the check would admit nobody.
• Use it on network policies only. Don't attach it to a profile's domain settings, a workspace or an Edge filter. Those are evaluated by the device's own Netzilo client, which is never a gateway session, so every device would be blocked.
• Treat it as segmentation. It tells a browser session apart from a device. Like the Enterprise Workspace and Enterprise Browser checks, it relies on what the peer reports, so it is not proof of the device's identity.

OS version checks are approximate for browser sessions. The gateway reads the operating system version from the browser's User-Agent. Chrome and Edge always report macOS as 10.15.7, and Windows 11 reports itself as Windows 10.0. A minimum version above those values therefore fails every Mac or Windows browser session. Leave OS minimums off the policies meant for browser users.

Blocked-access events are expected. When a session starts, it checks every policy that applies to its user. For each policy whose posture checks it fails, the activity log records Peer access blocked, usually with the reason Endpoint checks cannot be satisfied by a browser session. These events show the design working, not a fault.

Self-hosted servers and several servers

The extension follows one Netzilo server at a time: the one you last signed in on. It knows go.netzilo.com and every server you connected it to.

• Connecting a self-hosted server. Open its Workplace. The page shows Netzilo extension — connect to this server. Click Connect to this server: the extension reads the server's details itself and shows its confirmation over the page. Nothing is typed into the extension. After you confirm, the extension signs in on that server.
• Moving between servers. Opening the Workplace of another server you already connected switches the extension to it; it signs out of the previous server first. Only a page opened in the foreground switches; focusing an already open tab does not (its page shows Connect to this server instead). Signing out of the dashboard signs the extension out only when that dashboard is the server the extension follows.
• Managed devices. Administrators can set the server through browser policy (the extension's managed settings: portals, activePortal, lockPortal). With lockPortal the extension uses only that server and the Workplace of any other says the choice is managed by the organization.
• With the desktop client running, the client owns the login and none of this applies.

Browser support

To allow the extension in private windows in Firefox:

1. Open about:addons.
2. Click Netzilo Secure Browser.
3. Set Run in Private Windows to Allow.

Self-hosted servers

The self-hosted installers include the gateway: the custom installer, and the AWS and Azure Marketplace images. It runs as the gateway container next to management.

• Open port 8443. Allow inbound TCP 8443 to the server, in addition to the usual ports.
• HTTPS is required. The gateway uses the server's certificate, whether it comes from Let's Encrypt or is one you provided. A server installed without HTTPS gets no gateway.
• A different address. If browsers must reach the gateway at another host or port, for example through a load balancer, set Gateway proxy address in Settings > Permissions.
• Tuning. The gateway's settings are command-line options of the gateway service in the server's docker-compose.yml. After changing them, restart the container with docker compose up -d gateway.

The gateway never lets a browser reach the gateway host itself or cloud metadata addresses.

Troubleshooting

Private access shows "unavailable". Hover over the word to see the reason.

• Allow Netzilo in private windows. The browser is Firefox. Follow the steps in Browser support.
• Proxy managed by policy or proxy managed by another extension. A browser policy or another extension controls the proxy setting, and Netzilo cannot change it. Remove the conflicting policy or extension, or use the desktop client.
• Upstream proxy required: an operating-system proxy is in use. Internet traffic on this device needs a proxy set in the operating system. Enter it under Corporate proxy in the profile.
• Routing: HTTP followed by an error code. The extension cannot get routing from the management server. Check that the server is reachable and up to date.

Private access shows "off". Check the following:

• Allow clientless access is on in Settings > Permissions.
• The user is in a group of an enabled profile for their operating system.
• The profile's Browser routing is not Disabled.

The extension button says "Session expired – Login". The extension's login token expired while the browser was closed and could not be renewed. Open the Workplace page: a signed-in dashboard hands its session to the extension, which signs in again by itself. Signing out of the dashboard signs the extension out as well.

Workplace shows "Private access · Suspended". Hover over it: the reason is the extension's own. Then open the extension popup and check the Private access row. If it shows the gateway address, open an internal site: the status turns Online within 15 seconds once the gateway has answered the extension. If the row shows unavailable or off, follow the steps above.

Private access shows On or Off instead of an address. A desktop client is installed on the device, so the extension leaves routing to it. This is expected.

Public sites load but an internal site does not. Check the following:

• Policies. Confirm the user has a policy to the resource.
• Posture checks. Confirm the policy's posture checks can pass for a browser. An OS minimum version often fails, because a session's OS version is approximate. See Posture checks for browser sessions.
• The session. Look for the user's vp-<n>-PROXY peer in Endpoint > Peers.
• Idle restart. The first request after an idle period takes a few seconds while the session starts.

Devices with the Netzilo client lost a domain, a workspace or Edge tools after a posture check change. The check probably includes Netzilo Gateway and is attached to a profile or an Edge filter. Move it to a network policy.

The policy with the Netzilo Gateway check admits nobody. The same posture check also turns on an endpoint item. Keep Netzilo Gateway alone in its check.

A user cannot open another browser. The user already has 5 browser sessions. Idle sessions stop after 60 minutes, or you can raise --max-devices-per-user on a self-hosted server.
